SM X7

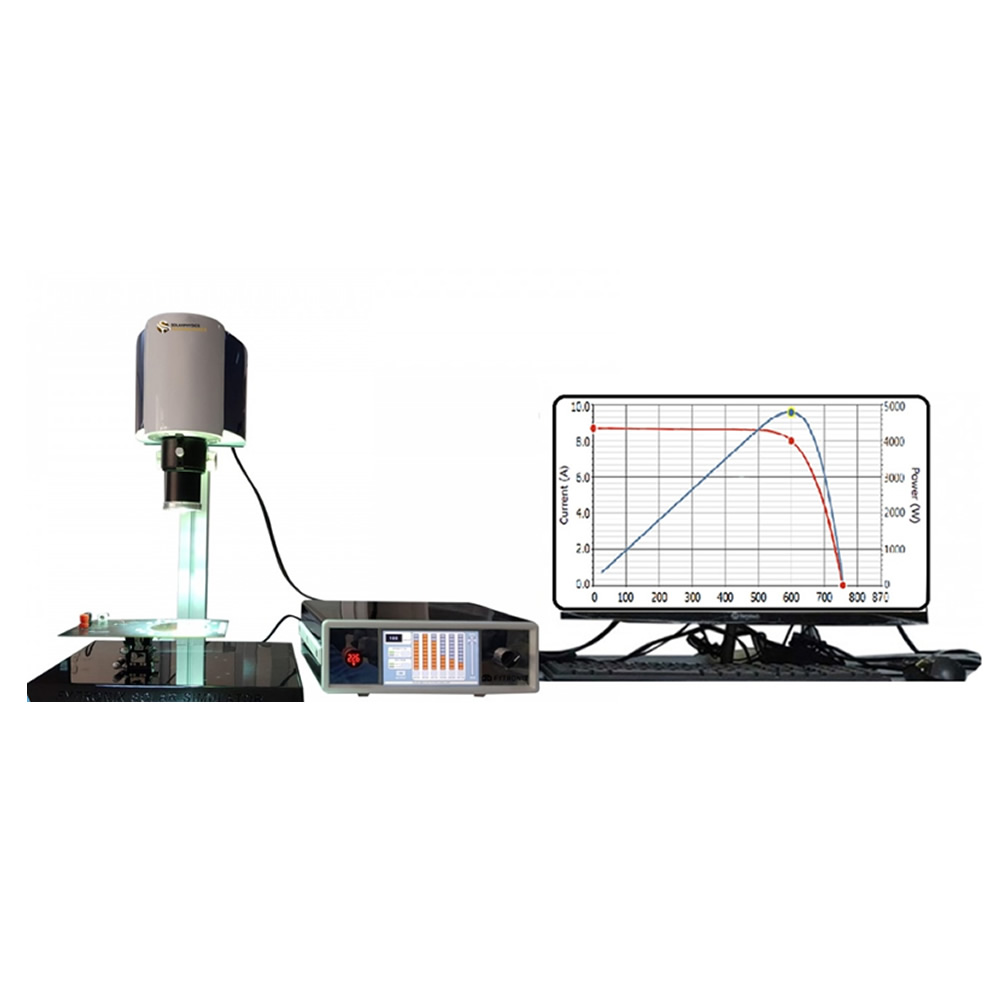

SS AAA SOLAR SIMULATOR SM-X7

Solar simulator for current-voltage (I-V) characteristic measurements Solar simulator for power-voltage (P-V) of solar cells measurements
SOLARPHYSTECH solar simulator is manufactured in accordance with IEC 60904-9 2007, JIS C 891 standards. SS-X5 solar simulator is automatically measured I-V and P-V, I-t and V-t measurements by changing solar irradiance from 1 mW/cm2 to 100 mW/cm2 by any step.
SS-X5 solar simulator automatically analyze photovoltaic mechanism of solar cell
SS-P5 solar simulator can measure the current values from 100 nA to 150mA with a source meter.

SPECIFICATIONS

SOFTWARE

Software measure all photovoltaic parameters of solar cells by computer. the system determine all photovoltaic parameters. software of solar simulator system determine the following photovoltaic parameters such as solar simulator automatically determine the photovoltaic parameters as follows
Open circuit voltage (voc) Short circuit current (isc) Fill factor (ff)
Voltage at pmax (vmax) Current at pmax (imax) Maximum power output (pmax) Shunt resistance (rsh) •
Series resistance (rs) •
Characteristic resistance of solar cell (rch) • Photoreponse (rr)
Solar cell efficiency (n)
also ,system analyze the automatically the photovoltaic mechanism analysis.

Certificate Compliance

07.082.021
Product: Solar Simulator                                       Model: MARK 9000                                     SN: 112 Applicable Standards: ASTM E 72-10, EIC 60904-9, JIS C 8912
Spectral Fit

Spectral Match Compared to AM 1.5G
